Name: Drainage Service

Display Field: DrainageServiceID

Type: Feature Layer

Geometry Type: esriGeometryPolyline

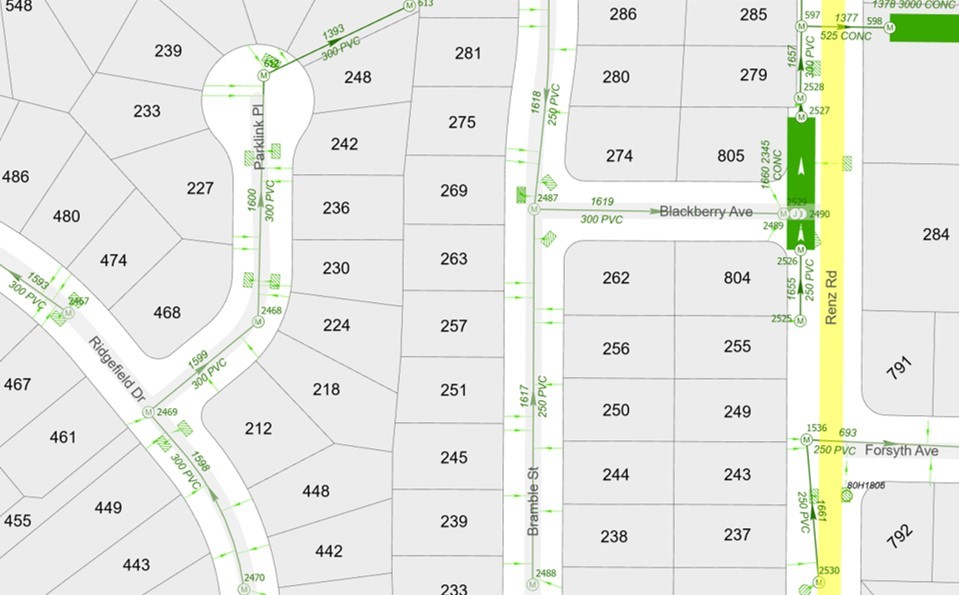

Description: Drainage (storm) service connections are used to show how water collected on city parcels enters the drainage network. The location of the service connections is defined by where they cross the property line (curb stop). The actual location of where the connection joins with the mainline (corp stop) is estimated. This data is maintained using record drawings provided by the Engineering Department, and enhanced by feedback from the Operations Department.

Service Item Id: f839b9997b4848b5b5e9c1e0fe3e26b3

Copyright Text: City of Parksville Engineering and Operations Departments

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 1000.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.3842789006103547E7
YMin: 6326265.548694239
XMax: -1.3832381623333931E7
YMax: 6333134.388864605
Spatial Reference: 102100  (3857)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [76, 230, 0, 255]
Width: 8
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• DrainageServiceID ( type: esriFieldTypeString, alias: Drainage Service ID, length: 10 )
• DrainMainID ( type: esriFieldTypeString, alias: Drainage Main ID, length: 10 )
• YearBuilt ( type: esriFieldTypeSmallInteger, alias: Year Built )
• Diameter ( type: esriFieldTypeSmallInteger, alias: Diameter (mm) )
• Material ( type: esriFieldTypeString, alias: Material, length: 20 , Coded Values: [PVC: PVC] , [CONC: CONC] , [CONC-R: CONC-R] )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )
• Status ( type: esriFieldTypeString, alias: Status, length: 255 , Coded Values: [Existing: Existing] , [Abandoned: Abandoned] , [Proposed: Proposed] , ...1 more... )
• StatusYear ( type: esriFieldTypeInteger, alias: StatusYear )
• Source ( type: esriFieldTypeString, alias: Source, length: 255 , Coded Values: [IFC: IFC] , [Record: Record] )
• VideoLink ( type: esriFieldTypeString, alias: VideoLink, length: 1000 )
• ReportLink ( type: esriFieldTypeString, alias: ReportLink, length: 1000 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
