Name: Drainage Basin Connection

Display Field: CBConnectionID

Type: Feature Layer

Geometry Type: esriGeometryPolyline

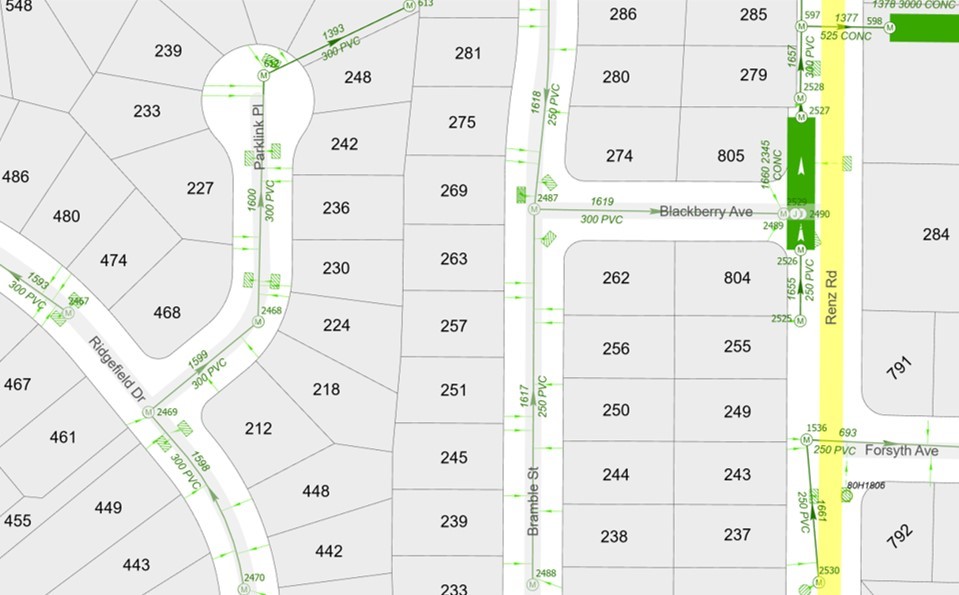

Description: Drainage (storm) catch and lawn basins are used to show how surface water within the city enters the drainage network. The location of existing catch and lawn basins were determined using Google Streetview, high-resolution orthophotos, ConnectExplorer (high resolution oblique imagery) and record drawings provided to the Engineering Department (2018 project). New catch and lawn basins are entered into the system using record drawings. In 2020, it was determined the catch and lawn basins should be connected to the mainlines so they could contribute as sources in future modelling projects.

Service Item Id: f839b9997b4848b5b5e9c1e0fe3e26b3

Copyright Text: City of Parksville Engineering and Operations Departments

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.3842832332128134E7
YMin: 6326242.202848866
XMax: -1.3831893623117752E7
YMax: 6333158.076011284
Spatial Reference: 102100  (3857)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: Status
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: Existing
  Label: Existing
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [76, 230, 0, 255]
  Width: 8
• Value: Proposed
  Label: Proposed
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [211, 255, 190, 255]
  Width: 8
• Value: Abandoned
  Label: Abandoned
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [204, 204, 204, 255]
  Width: 8
• Value: Removed
  Label: Removed
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 0]
  Width: 0
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• CBConnectionID ( type: esriFieldTypeString, alias: CBConnectionID, length: 10 )
• Notes ( type: esriFieldTypeString, alias: Notes, length: 200 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• Status ( type: esriFieldTypeString, alias: Status, length: 255 , Coded Values: [Existing: Existing] , [Abandoned: Abandoned] , [Proposed: Proposed] , ...1 more... )
• StatusYear ( type: esriFieldTypeInteger, alias: StatusYear )
• Source ( type: esriFieldTypeString, alias: Source, length: 255 , Coded Values: [IFC: IFC] , [Record: Record] )
• VideoLink ( type: esriFieldTypeString, alias: VideoLink, length: 500 )
• ReportLink ( type: esriFieldTypeString, alias: ReportLink, length: 500 )
• Diameter ( type: esriFieldTypeString, alias: Diameter, length: 255 )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
