Name: Sanitary Node

Display Field: SanNodeID

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: Sanitary nodes (manholes, cleanouts, caps, junctions, and pump stations) form part of the sanitary management network. The attributes collected for each node are sourced from record drawings provided to the Engineering Department. This data is further enhanced by feedback provided by the Operations crews.

Service Item Id: 03e6c2a0fa5a40ab84a76976dc2abff4

Copyright Text: City of Parksville Engineering and Operations Departments

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 2000.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.384277987340174E7
YMin: 6326260.594899815
XMax: -1.3830182930157034E7
YMax: 6333394.690795013
Spatial Reference: 102100  (3857)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: Category
Field 2: Status
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: MANHOLE,Existing
  Label: Manhole
  Description: N/A
  Symbol:

• Value: CLEANOUT,Existing
  Label: Cleanout
  Description: N/A
  Symbol:

• Value: PUMPSTATION,Existing
  Label: Pumpstation
  Description: N/A
  Symbol:

• Value: JUNCTION,Existing
  Label: Junction
  Description: N/A
  Symbol:
  Style: esriSMSCircle
  Color: [255, 255, 255, 255]
  Size: 3.0
  Angle: 0.0
  XOffset: 0
  YOffset: 0
  Outline:
  [230, 0, 0, 255] Width: 0
• Value: CAP,Existing
  Label: Cap
  Description: N/A
  Symbol:

• Value: MANHOLE,Abandoned
  Label: Manhole (Abandoned)
  Description: N/A
  Symbol:

Transparency: 0
Labeling Info:
Label Placement: esriServerPointLabelPlacementAboveRight
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [230, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial Narrow
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 2000.0
Max. Scale: 0.0

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• SanNodeID ( type: esriFieldTypeString, alias: SanNodeID, length: 10 )
• Category ( type: esriFieldTypeString, alias: Category, length: 15 , Coded Values: [CAP: CAP] , [CLEANOUT: CLEANOUT] , [JUNCTION: JUNCTION] , ...3 more... )
• InvElev ( type: esriFieldTypeDouble, alias: InvElev )
• RimElev ( type: esriFieldTypeDouble, alias: RimElev )
• YearBuilt ( type: esriFieldTypeInteger, alias: YearBuilt )
• Rotation ( type: esriFieldTypeSmallInteger, alias: Rotation )
• Address ( type: esriFieldTypeString, alias: Address, length: 50 )
• RoadID ( type: esriFieldTypeString, alias: RoadID, length: 10 )
• Notes ( type: esriFieldTypeString, alias: Notes, length: 200 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• Status ( type: esriFieldTypeString, alias: Status, length: 255 , Coded Values: [Existing: Existing] , [Abandoned: Abandoned] , [Proposed: Proposed] , ...1 more... )
• StatusYear ( type: esriFieldTypeInteger, alias: StatusYear )
• Source ( type: esriFieldTypeString, alias: Source, length: 255 , Coded Values: [IFC: IFC] , [Record: Record] )
• Depth ( type: esriFieldTypeDouble, alias: Depth )
• PipeSize_In ( type: esriFieldTypeInteger, alias: PipeSize_In )
• PipeSize_Out ( type: esriFieldTypeInteger, alias: PipeSize_Out )
• VideoLink ( type: esriFieldTypeString, alias: VideoLink, length: 1000 )
• ReportLink ( type: esriFieldTypeString, alias: ReportLink, length: 1000 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

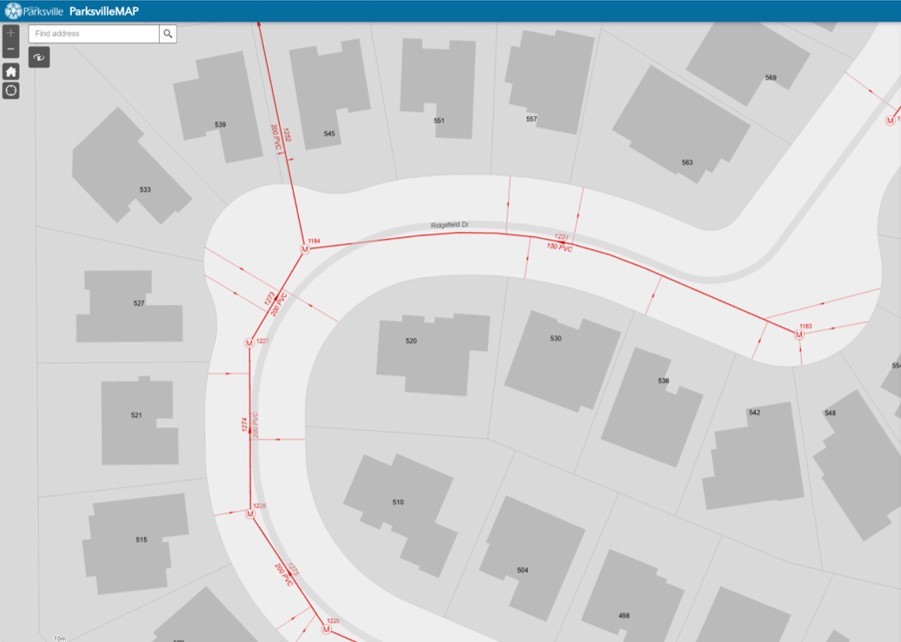

  Iteminfo   Thumbnail   Metadata
